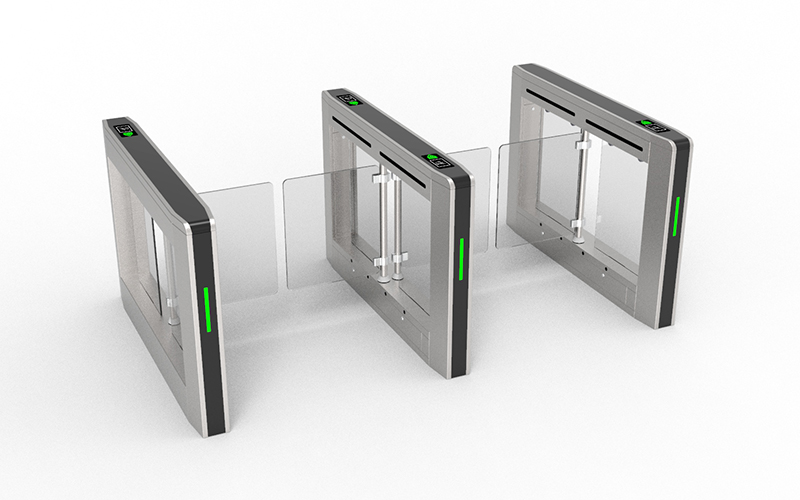

Narrow-Body Servo Speed Gate

Key Features & Functions

◆  New-generation industrial-grade ARM control system, independently developed by Bov, supports programmable operating states and multiple working modes with enhanced multi-function settings for a more scientific, refined, and intuitive user experience.

◆  Alarm Function: device triggers an alarm for illegal intrusion, tailgating, or passage timeout.

◆  Anti-Intrusion Protection: forcibly entering without a valid credential, or while passage is prohibited, is treated as illegal intrusion — the system alarms automatically and ensures the arm closes.

◆  Anti-Reverse Intrusion: when a card opens the gate in one direction, entry from the opposite direction triggers an alarm and closes the arm; once the intruder leaves, the arm reopens so valid users need not re-credential.

◆  Power-On Self-Test: on power-up or restart, the device automatically verifies all functions; any anomaly triggers an alarm with a diagnostic code.

◆  Anti-Pinch Protection: dual infrared and mechanical protection effectively safeguards pedestrian passage safety.

◆  Anti-Collision Function: Bov’s proprietary mechanical structure provides buffering during forced ramming — reducing arm damage, deterring unauthorized entry, and significantly lowering mechanical impact.

◆  Emergency Escape: upon receiving a fire alarm signal, the device unconditionally opens with top priority; configured for power-failure auto-open to facilitate crowd evacuation in compliance with fire safety requirements.

◆  Compatibility: dry-contact signal input and wide-threshold-voltage signal output interfaces, compatible with all major access control systems.

Technical Specifications
